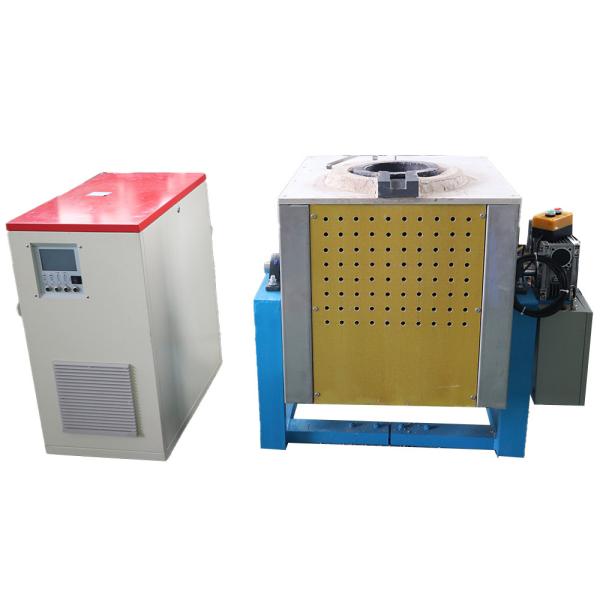

DSP-120KW-100KGS Medium Frequency Induction Melting Furnace For Gold
Characteristic:
Melting Furnace using for different metals, such as Gold, Platinum, Silver, Steel, Stainless Steel, Iron, Copper, Brass, Zinc, Alum,Bronze and so on.
1. Low Frequency, the melting Furnace is fast and the heating efficiency is high.
2 Gear Motor Tilt System, it is very convenient to pour the liquid.
3.Digital PID temperature control module can be configured to set the target temperature of workpiece (infrared temperature measurement automatically).
4. There are 5 working model, manual, timer, Fixed temperature, Constant temperature, section heating model.
5. This machine has Memory Storage Function, There are 9 (P1-P9)programs, which can memorize 9 different workpiece in the machine, and select programs by clicking P(P1-P9). Can save much time if you have many workpiece in one machine, you can choose the programs (P1-P9) to fast working.
6. Infineon IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
7. Imported integrated circuit and power module are used to realize automatic frequency tracking. It has the characteristics of small size, light weight, high efficiency, energy saving, simple installation, high reliability and not easy to damage.
8. Our power supply has the insolation transformer, melting furnace’s output voltage is low, so very safe to operate our melting furnace.
9. Infineon IGBT Melting Furnace, Can save 20% electricity compare SCR parallel type.
10. Series Resonance IGBT type machine, will not interference other equipment working, No need special input transformer to working this machine.
Parameters:
| Type | MF-120KW-100KG IGBT |
| Work power | 3×380V/415V,440V,480V |
| The range of operating voltage | 340V-430V |
| Output power | 100 KW |
| Capacity | 100KG |
| Input current | 150A |
| Average Melting time | 30-40minutes |
| Fluctuating frequency | 1-20KHZ |
| The flow rate of cooling water | 0.1-0.3Mpa 28L/Min |
| Water temperature protection point | 50℃ |
| Duty cycle | 100%(40degree room temperature) |
| Weight: | Main parts: 160KG/ with package 190kg |
| Furnace Weight | About 380KG /with package 420kg |
| Size: | 800*600*800mm/ With package:850*650*980mm |
| Furnace Size | 850*1000*1100mm With package:880*1050*1250mm |
Application
Smelting mainly aims to melt the metal into liquid by using the high temperature, which is mainly applicable to the smelting of Gold, Siver, Platinum, iron, steel, copper, aluminum, zinc as well as various noble metals.
After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
