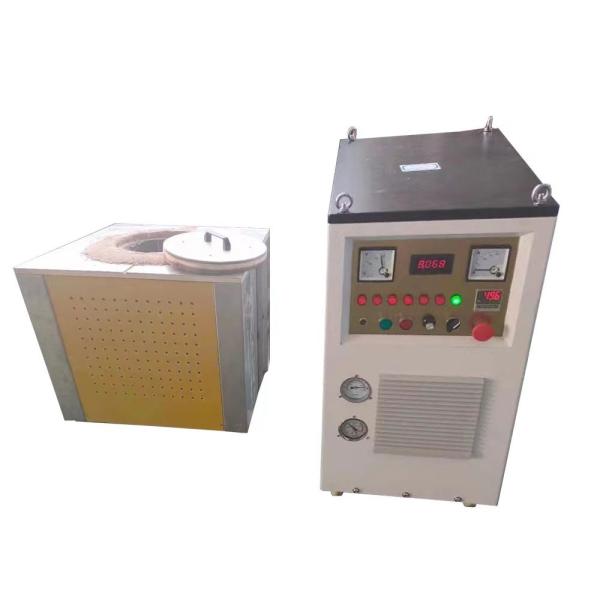

MF-80KW-50KG Medium Frequency Induction Melting Furnace for All Metal
Intermediate frequency electric furnace is widely apply in melting non-ferrous and ferrous metal. Such as carbon steel, alloy steel, special steel, iron, copper,Brass, Bronze and aluminum, Zinc,etc.
Features:
1. Infineon IGBT type, the system structure is safe and reliable, stable performance and simple operation.
2. Imported integrated circuit and power module are used to realize automatic frequency tracking. It has the characteristics of small size, light weight, high efficiency, energy saving, simple installation, high reliability and not easy to damage.
3.The Melting Speed is fast and the heating efficiency is high. And it is easy to ensure the heating quality and the running water operation.
4. Our power supply has the insolation transformer, melting furnace’s output voltage is low, so very safe to operate our melting furnace.
5. Infineon IGBT type, Can save 20% electricity compare SCR parallel type and Lamp Vacuum Tube type.
6. Series Resonance IGBT type machine, will not interference other equipment working, No need special input transformer to working this machine.
7. Easy to Using, no need adjust the main board, no need to adjust capacitor's connection.
8. After we debug the machine in our company, then you can use it directly. Very convenient.
9. More stable performance
Parameters:
| Type | MF-80KW-50KGS |
| Work power | 3×380V/415V,440V,480V |
| The range of operating voltage | 340V-430V |
| Output power | 80 KW |
| Capacity | 50KG |
| Input current | 120A |
| Average Melting time | 30minutes |
| Fluctuating frequency | 1-15KHZ |
| The flow rate of cooling water | 0.08-0.16 Mpa 28L/Min |
| Water temperature protection point | 50℃ |
| Duty cycle | 100%(40degree room temperature) |
| Weight: | Main parts: 198KG/ with package 218kg |
| Furnace Weight | About 300KG /with package 330kg |
| Size: | 620*650*800mm
With package:650*680*1050mm |
| Furnace Size | 750*900*1000mm With package:780*1000*1150mm |
Application
Melting All Kinds of the Metal, for example, S.S, Steel, Iron, Bronze, Copper, Brass, Alum, Platinum, Gold, Silver,Zinc.
Advantage of Compare the SCR Parallel induction heating machine:
1. Infineon IGBT type,Can save 20-30% electricity compare SCR parallel type
2. Series Resonance IGBT type machine, will not interference other equipment working, No need special input transformer to working this machine. Will not pollute electricity Net.
3. Easy to Using, no need adjust the main board, no need to adjust capacitor's connection when you want to work other workpiece.
4. After we debug the machine in our company, then you can use it directly. Very convenient.
5. More stable perormance.
6.Water Pressure and water Temperature Meter in the machine.
After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
